| Place of Origin | JIANGSU |
| Brand Name | TISCO |
| Certification | SGS ISO ROHS |
| Model Number | 1010 3030 5052 6061 7075 |

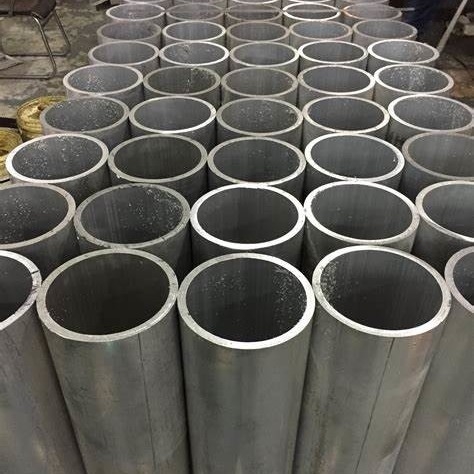

Aluminum Alloy Pipe ASTM B429/B429M T6 Anodized Round T52 Tube OD 100MM
|
Note:
Applications of 6063 Aluminum AlloyTypical uses of AA 6063 aluminum alloy include: furniture, doors, window frames, architectural profiles, decorative finishes, plumbing, railings, truck and trailer floors, electrical and electronic parts, highway signs, hospital and medical equipment, kitchen equipment, radiators; Extrusions in trains, cars and airplanes. |
|
| Aluminium 6063-T6 Mechanical Properties – Seamless Pipe | Elongation, ≥, % | |||||
| Standard | Aluminum Alloy and Temper | Pipe Size, mm (in.) | Tensile Strength, Mpa (ksi), ≥ | Yield Strength (0.2 % offset), Mpa (ksi), ≥ | in 50 mm | in 5 × Diameter |
| ASTM B241/B241M | 6063-T6 | all | 205 (30) | 170 (25) | 8 | 7 |
| Seamless Extruded Tube | Elongation ≥, % | ||||||
| Standard | Aluminum Alloy and Temper | Specified Section or Wall Thickness, mm. (in.) |
Area, mm2 (in2) | Tensile Strength, Mpa (ksi), ≥ | Yield Strength (0.2 % offset), Mpa (ksi), ≥ | in 50 mm (2 in.) | in 5 × Diameter |
| ASTM B241/B241M | 6063-O | all | all | ≤130 (19) | – | 18 | 16 |
| T1 | ≤12.5 (0.5) | all | 115 (17) | 60 (9) | 12 | 10 | |
| >12.5-25.0 (0.5-1.0) | all | 110 (16) | 55 (8) | – | 10 | ||
| T4,T42 | ≤12.5 (0.5) | all | 130 (19) | 70 (10) | 14 | 12 | |
| >12.5-25.0 (0.5-1.0) | all | 125 (18) | 60 (9) | – | 12 | ||
| T5 | ≤12.5 (0.5) | all | 150 (22) | 110 (16) | 8 | 7 | |
| >12.5-25.0 (0.5-1.0) | all | 145 (21) | 105 (15) | – | 7 | ||
| T52 | ≤25 (1.0) | all | 150-205 (22-30) | 110-170 (16-25) | 8 | 7 | |
| T6 | ≤3.2 (0.125) | all | 205 (30) | 170 (25) | 8 | – | |
| >3.2-25.0 (0.125-1.0) | all | 205 (30) | 170 (25) | 10 | 9 | ||
ASTM B429/B429M: Aluminium-Alloy Extruded Structural Pipe and Tube
| Aluminium 6063-T5 T6 Mechanical Properties – Extruded Structural Pipe and Tube | Elongation ≥, % | |||||
| Aluminum Alloy and Temper | Diameter or Thickness (t), mm (in.) | Tensile Strength, Mpa (ksi), ≥ | Yield Strength (0.2 % offset), Mpa (ksi), ≥ | Full-Section Specimen in 2 in. (50mm) | Cut-Out Specimen in 2 in. (50mm) | Cut-Out Specimen, 5×diameter (5.65√A) |
| 6063-O | all | ≤130 (19) | – | 18 | 18 | – |
| 6063-T1 | ≤12.5 (0.5) | 115 (17) | 60 (9) | 12 | 12 | – |
| 12.5<t≤25 (0.5<t≤1) | 110 (16) | 55 (8) | 12 | 12 | – | |
| 6063-T4, T42 | ≤12.5 (0.5) | 130 (19) | 70 (10) | 14 | 14 | 12 |
| 12.5<t≤25 (0.5<t≤1) | 125 (18) | 60 (9) | 14 | – | 12 | |
| 6063-T5 | ≤12.5 (0.5) | 150 (22) | 110 (16) | 8 | 8 | – |
| 12.5<t≤25 (0.5<t≤1) | 145 (21) | 105 (15) | 8 | 8 | – | |
| 6063-T52 | ≤25 (1) | >150 (22), ≤205 (30) | >110 (16), ≤170 (25) | 8 | 8 | – |
| 6063-T6, T62 | ≤12.5 (0.5) | 205 (30) | 170 (25) | 8 | 8 | – |
| ≤12.5 (0.5) | 205 (30) | 170 (25) | 10 | 10 | – | |
